- Place of Origin: SHANGHAI, CHINA
- Brand Name: JIANYE
- Model Number: 400

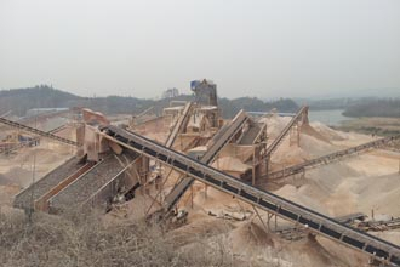

The belt conveyor has been widely used in the crushing plant and grinding plant. The Jianye belt conveyor features its large capacities, easy maintenance, simple structures and standard parts. It can be used to transport powder and blocked material both. With a reasonable layout of several belt conveyors, it can ensure the smooth and stable work of the whole grinding or crushing plant. Up to now, the belt conveyor has been widely used in the fields like the mining industry, the metallurgy, the coal exploitation and so forth. After all, the belt conveyor is the elemental part in a complete crushing plant and it does have an important effect on the stable production of a plant.
According to the craft requirements for delivery, you can transport with single machine or with several ones, and also make up a horizontal and inclined transportation system along with other delivering devices, in order to meet different needs.
It features of large delivering quantity, simple structure, convenient maintenance, standard parts and so on. And it is widely used in the following industries: minerals, metallurgy, coal industry and some other fields, conveying loose materials and pieces. According to the craft requirements for delivery, you can transport with single machine or with several ones, and also make up a horizontal and inclined transportation system along with other delivering devices, in order to meet different needs.
Belt Width | Belt Length(m) | Belt Speed(m/s) | Capacity(t/h) | ||
Power(kw) | |||||
400 | ≤12 | 12-20 | 20-25 | 0.8-2.0 | 40-80 |
1.5 | 2.2 | 3 | |||
500 | ≤12 | 12-20 | 20-30 | 0.8-2.0 | 78-191 |
3 | 4 | 5.5 | |||
650 | ≤12 | 12-20 | 20-30 | 0.8-2.0 | 131-323 |
4 | 5.5 | 7.5 | |||
800 | ≤6 | 6-15 | 15-25 | 1.0-2.0 | 278-546 |
3 | 5.5 | 7.5 | |||
1000 | ≤10 | 10-20 | 20-25 | 1.0-2.0 | 465-853 |
5.5 | 7.5 | 11 | |||
1200 | ≤10 | 10-20 | 20-25 | 1.0-2.0 | 655-1284 |
